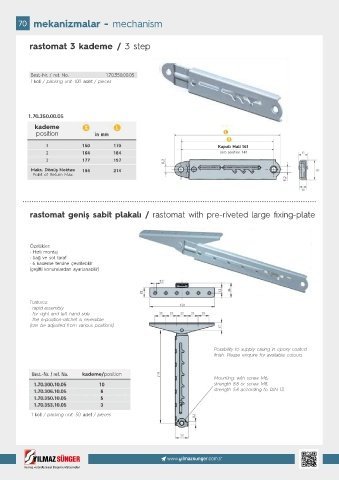

70 mekanizmalar - mechanism

rastomat 3 kademe / 3 step

Best.-Nr. / ref. No. 1.70.350.00.05
1 koli / packing unit: 100 adet / pieces

kademe
position

Kapalı Hali 141

Maks. Dönüş Noktası
Point of Return Max.

rastomat geniş sabit plakalı / rastomat with pre-riveted large fixing-plate

Özellikler:
· Hızlı montaj
· Sağ ve sol taraf
· 6 kademe tersine çevrilebilir
(çeşitli konumlardan ayarlanabilir)

Features:
· rapid assembly
· for right and left hand side
· the 6-position-ratchet is reversible
(can be adjusted from various positions)

Possibility to supply casing in epoxy-coated
finish. Please enquire for available colours.

kademe/position
Mounting: with screw M6,
strength 8.8 or screw M8,
strength 5.8 according to DIN 13.

1 koli / packing unit: 50 adet / pieces
